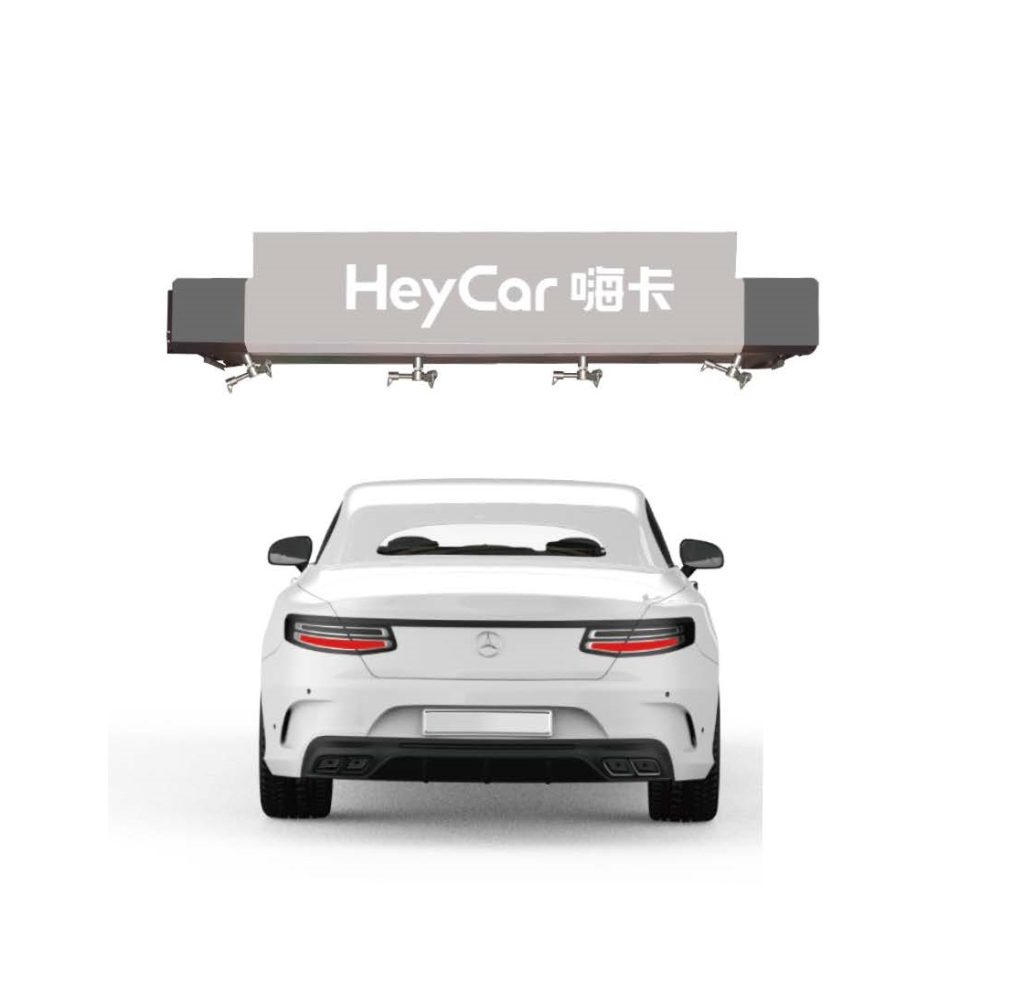

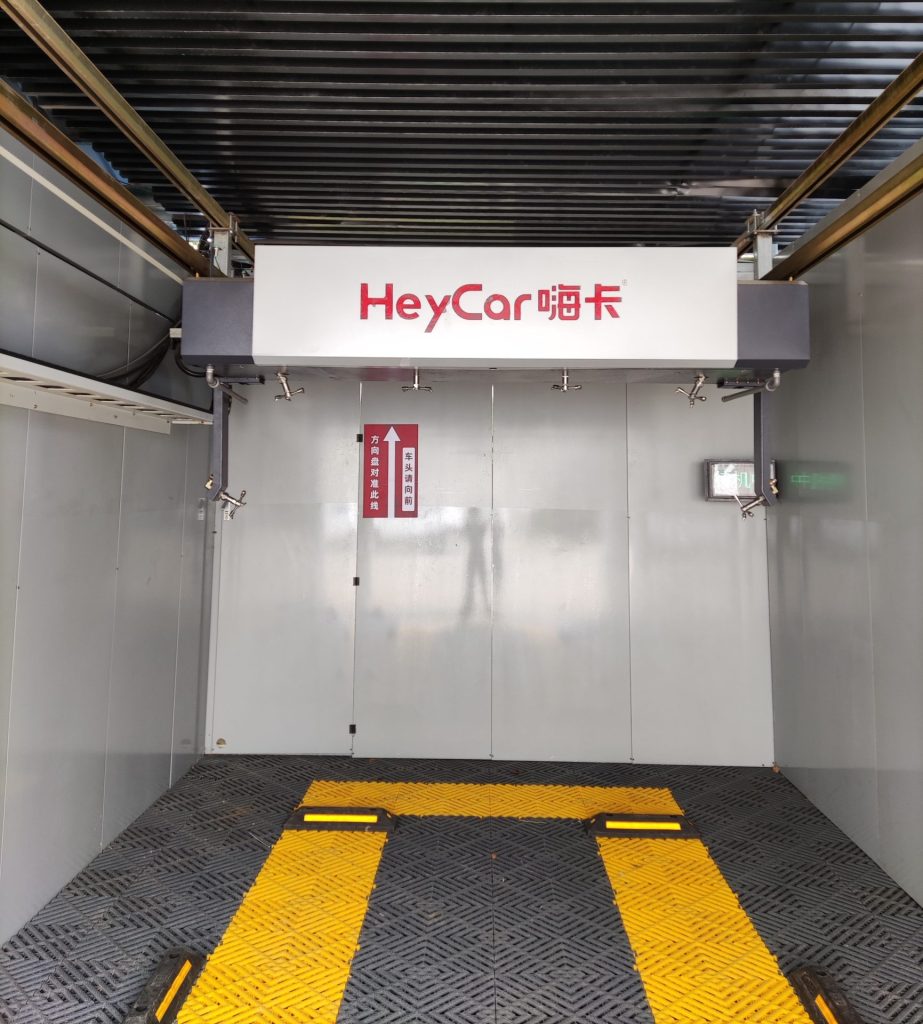

HeyCar Series 2 Touchless Automatic Car Wash Machine
{{ galleryProps.activeIndex + 1 }}/4
Description
Product Overview
The HeyCar Series 2 is engineered for businesses with limited bay space or entry-level budgets. Despite its compact footprint, it delivers high-efficiency cleaning by utilizing automated smart liquid dosing and a synchronized high-pressure water system, ensuring a scratch-free finish without manual labor.

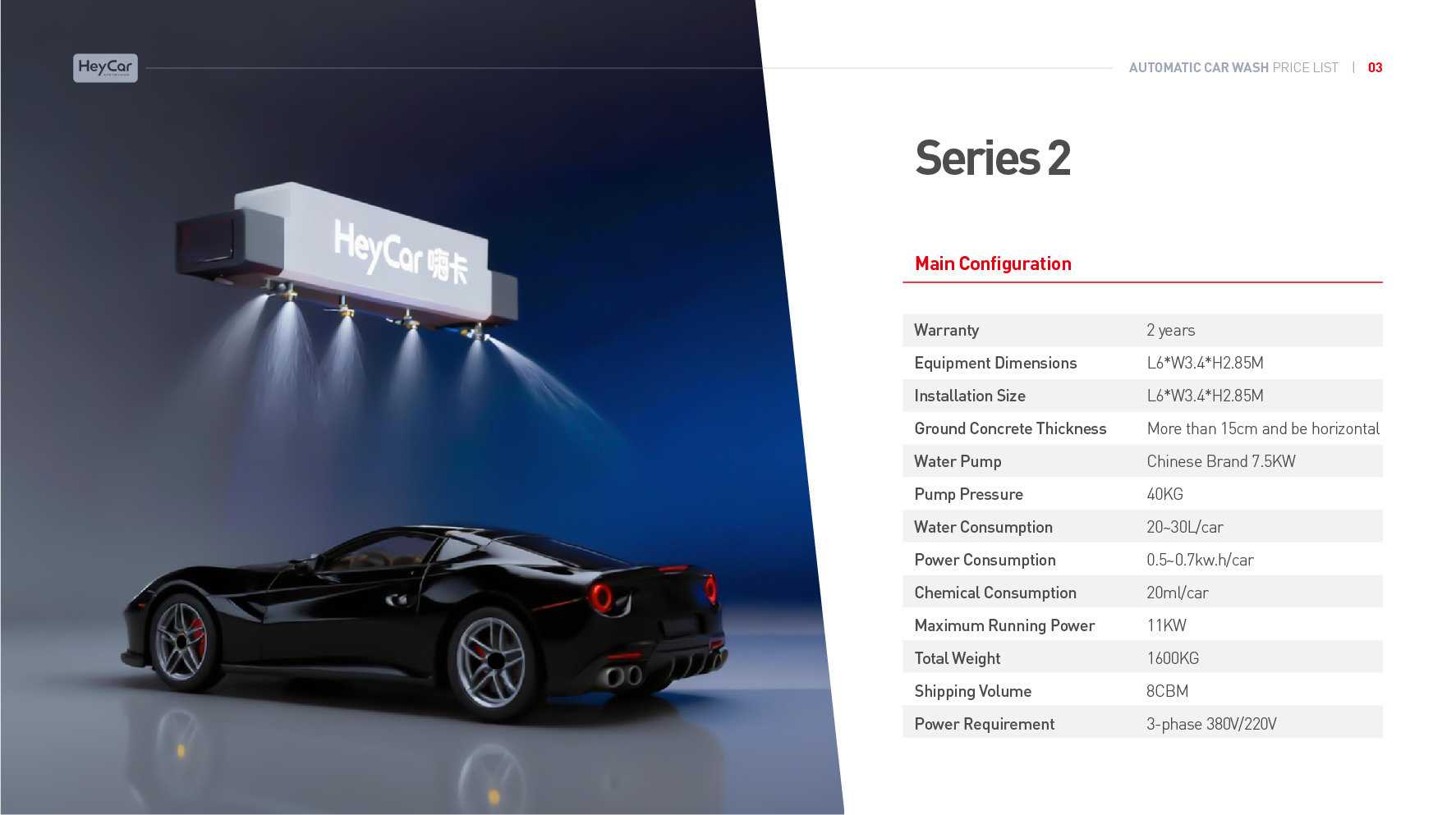

Technical Specifications & Engineering Blueprint
| Technical Parameters | Specifications & Value |
|---|---|
| Equipment Dimensions | 6000mm × 1200mm × 900mm |

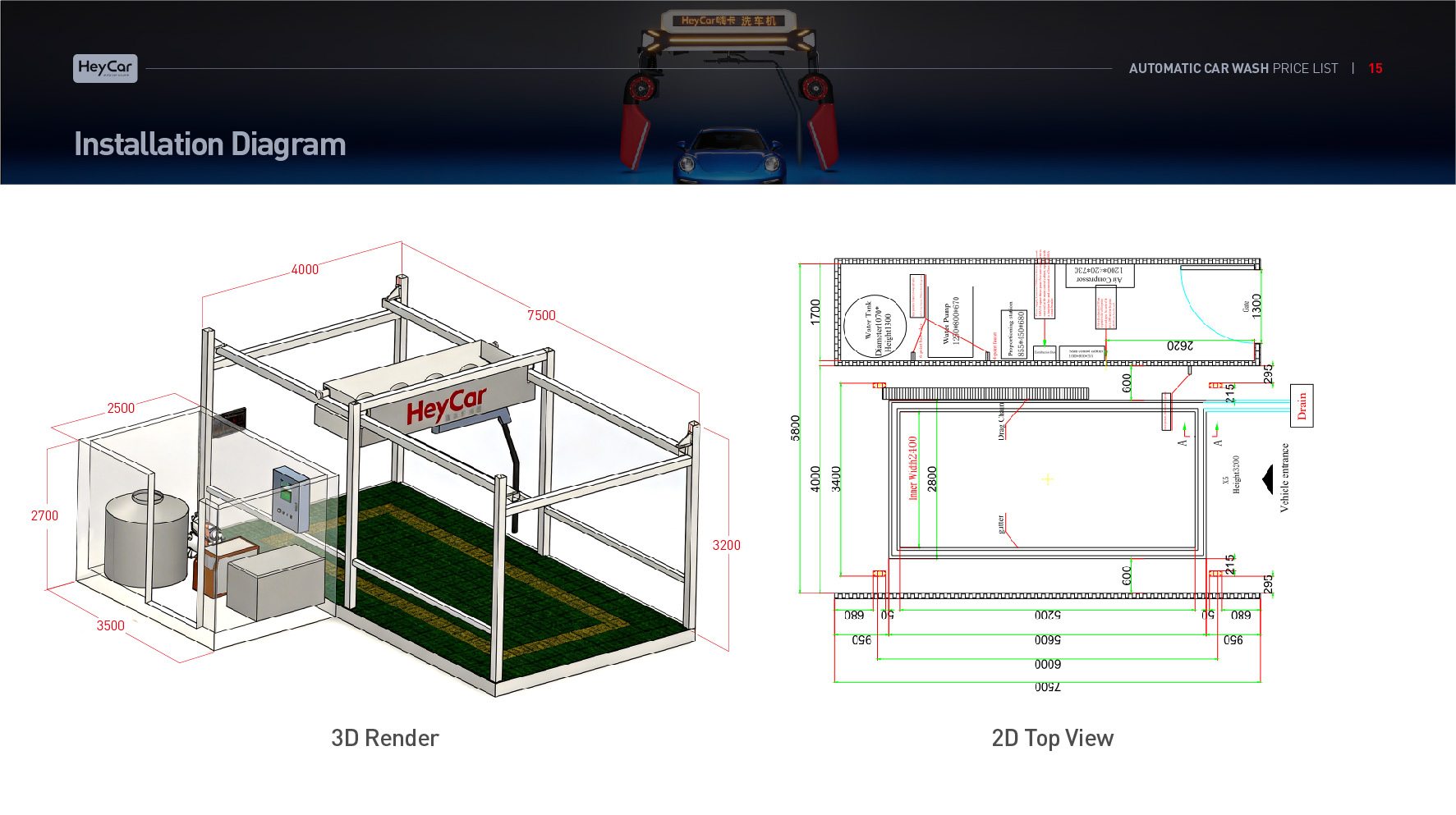

| Minimum Bay Requirement (L×W×H) | 6000mm × 3400mm × 2850mm |
| High-Pressure Pump Station | Chinese Premium Brand 7.5 KW Pump |
| Max Pump Pressure | 40 KG / 568 PSI |
| Water Consumption | 20 – 30 Liters per car (Ultra Eco Mode) |
| Electricity Consumption | 0.5 – 0.7 kW·h per vehicle |
| Chemical / Shampoo Dosing | 20 ml per car |
| Maximum Running Power | 11 KW |
| Power Supply Requirement | 3-Phase 380V / 220V (50Hz/60Hz) |
| Shipping Weight & Volume | 1600 KG / 8 CBM |
| Global Factory Warranty | 2 Years Full Mechanical Warranty |
Core Functional Checklist
- Chassis Cleaning: Integrated bottom-up high-pressure water nozzles to remove heavy mud and road salt.
- Smart Chemical Dosing: Automated mixing valve ensures perfect dilution of pre-soak shampoo.

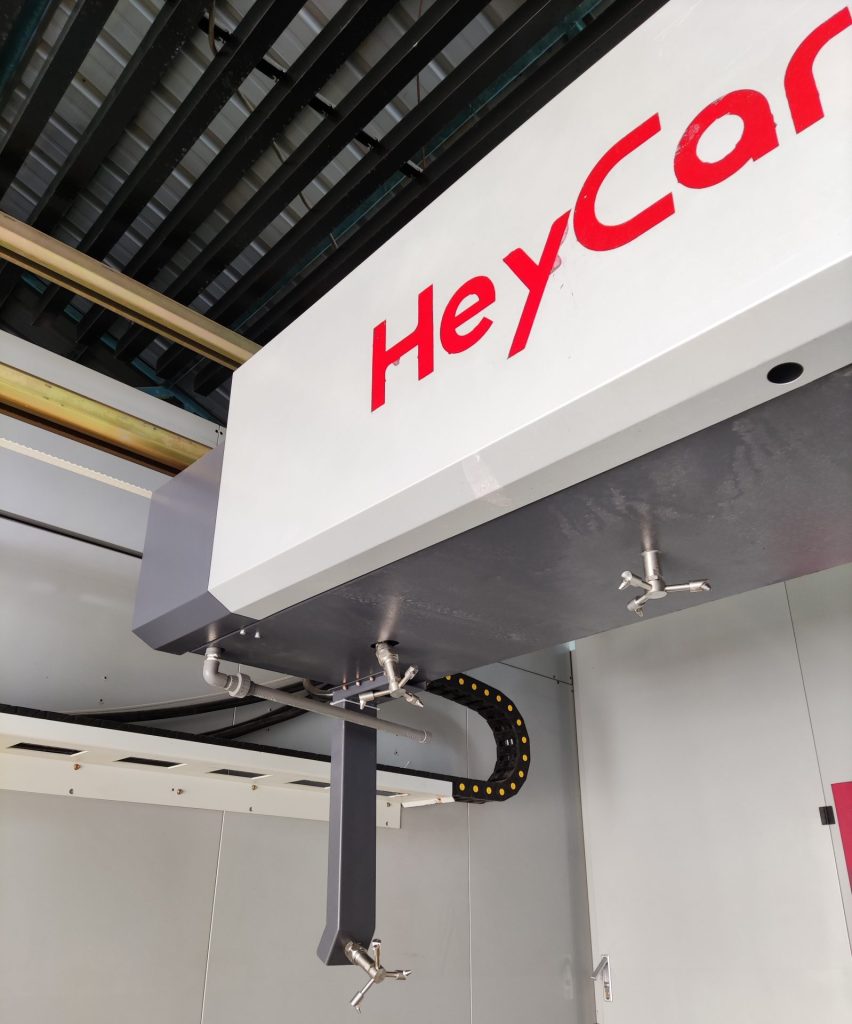

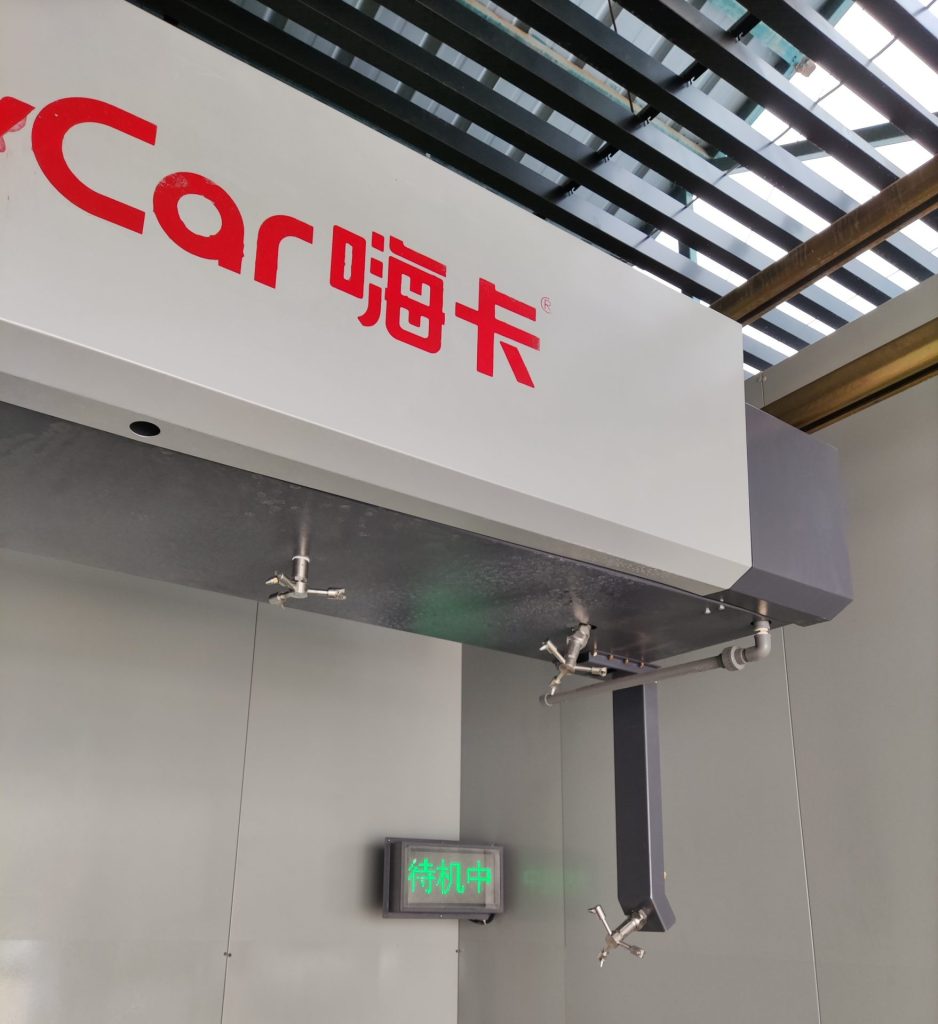

- 360° Rotating Wash Arm: Single-arm precision movement tracking vehicle silhouettes.
- Space-Saving Design: Fits perfectly into standard shipping containers or narrow detail bays.

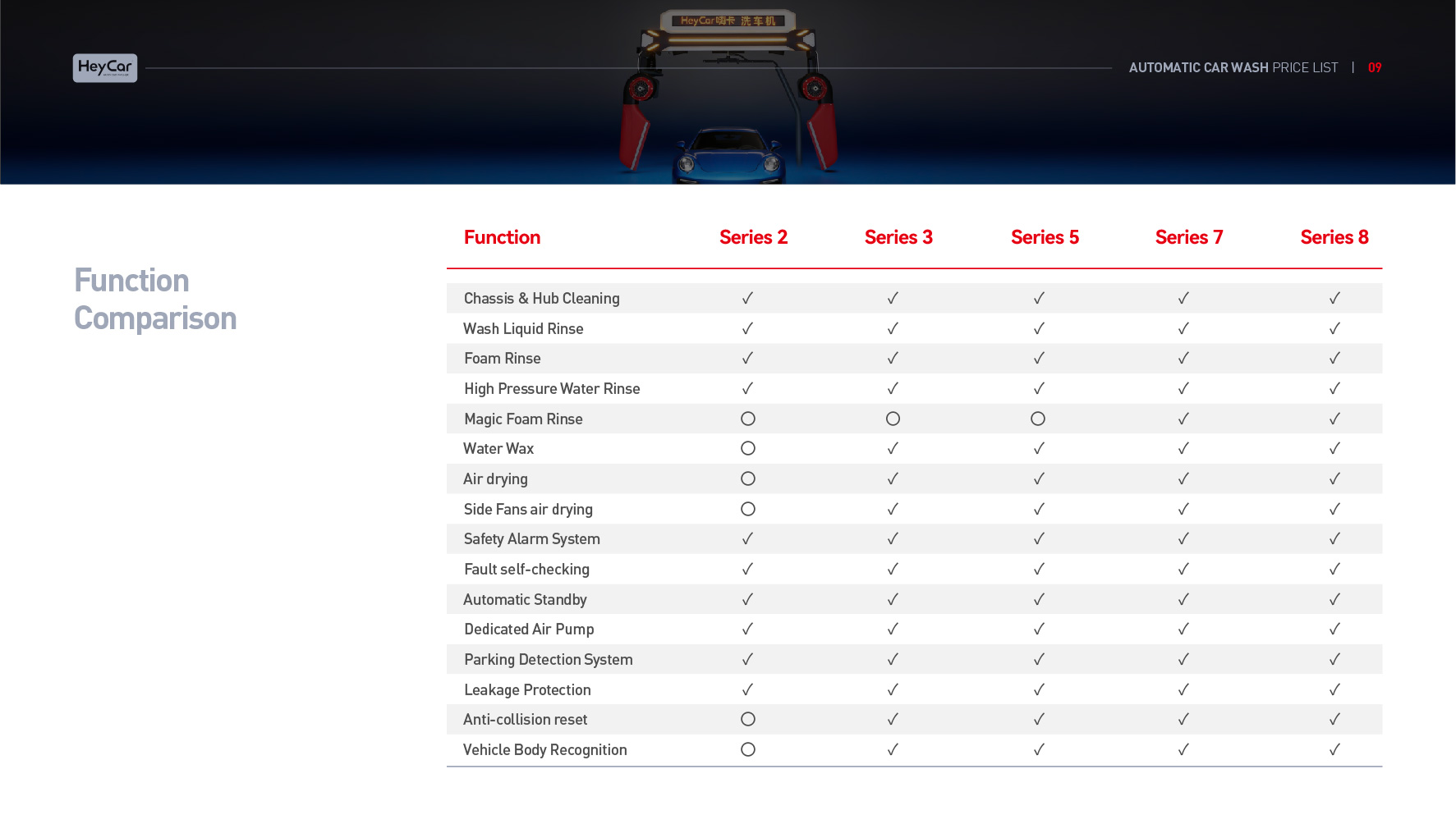

HeyCar Full Series Function Comparison Matrix
Compare technical capabilities and built-in washing features across the complete HeyCar touchless automated line to find the perfect machinery for your commercial car wash site layout.
| Washing Features | Series 2 | Series 3 | Series 5 | Series 7/7S | Series 8 |
|---|---|---|---|---|---|
| Chassis Wash | ✔ Standard | ✔ Standard | ✔ Standard | ✔ Standard | ✔ Standard |
| Pre-Soak Shampoo | ✔ Standard | ✔ Standard | ✔ Standard | ✔ Standard | ✔ Standard |
| High-Pressure Wash | 40 KG | 60 KG | 80 KG (German) | 100 KG (German) | 120 KG (PINFL) |
| Built-in Air Dryer | ✘ No | ✔ 16KW (Top) | ✔ 16KW (Top) | ✔ 27KW (7S Full) | ✔ Contouring Smart |
| Magic / Lava Foam | ✘ No | ✘ No | Optional | ✔ Standard | ✔ Standard |
| Water Wax Coat | ✘ No | ✔ Standard | ✔ Standard | ✔ Standard | ✔ Standard |
HeyCar Touchless Car Wash Machine Full Series Technical Specifications
| Model / Specifications | TS-2 | TS-3 / TS-3S (+Side Fan) | TS-5 / TS-5S (+Side Fan) | TS-7 / TS-7S (+Side Fan) |
|---|---|---|---|---|
| Max Wash Size | 5.2 × 2 × 2 M | 5.2 × 2 × 2 M | 5.2 × 2 × 2 M | 6.2 × 2 × 2 M |
| Machine Dimensions | 6 × 3.4 × 2.85 M | 6.3 × 3.4 × 3 M | 6 × 3.4 × 3 M | 7 × 3.7 × 3.2 M |
| Min Installation Space | 6 × 3.4 × 2.85 M | 6.5 × 3.5 × 3 M | 7 × 4 × 3.2 M | 7.5 × 4 × 3.2 M |
| High-Pressure Pump | Chinese Brand 7.5KW | Chinese Brand 11KW | German Perfect Power 11KW | German Perfect Power 15KW |
| Water Pressure | 40 kg | 60 kg | 80 kg | 100 kg |
| Total Power | 11 KW | 31.05 KW | 31.05 KW | 35.05 KW |
| Max Running Power | 8.05 KW | 18.75 KW | 18.75 KW | 18.75 KW |
| Avg Water Consumption | 30L – 40L / Car | 60L – 80L / Car | 100L – 120L / Car | 120L – 150L / Car |
| Power Consumption | 0.5 kw.h / car | 0.8 kw.h / car | 1.0 kw.h / car | 1.2 kw.h / car |
| Chemical Consumption | 20 – 40 ml | 20 – 40 ml | 20 – 40 ml | 20 – 40 ml |
| Washing Duration | 2 – 3 minutes | 6 – 8 minutes | 6 – 8 minutes | 6 – 8 minutes |
| Air Dryer Configuration | N/A (Not Available) | 4 × 4KW Fans (Side Fans Optional) | 4 × 4KW Fans (Side Fans Optional) | 4 × 4KW Fans (Side Fans Optional) |
| Control System | Domestic Integrated Board | Domestic Integrated Board | Japanese Mitsubishi PLC | Japanese Mitsubishi PLC |
| Frame Material | Hot-dip Galvanized Metal Sheet | |||
| Mainframe Material | Stainless Steel 304 (SUS304) | |||

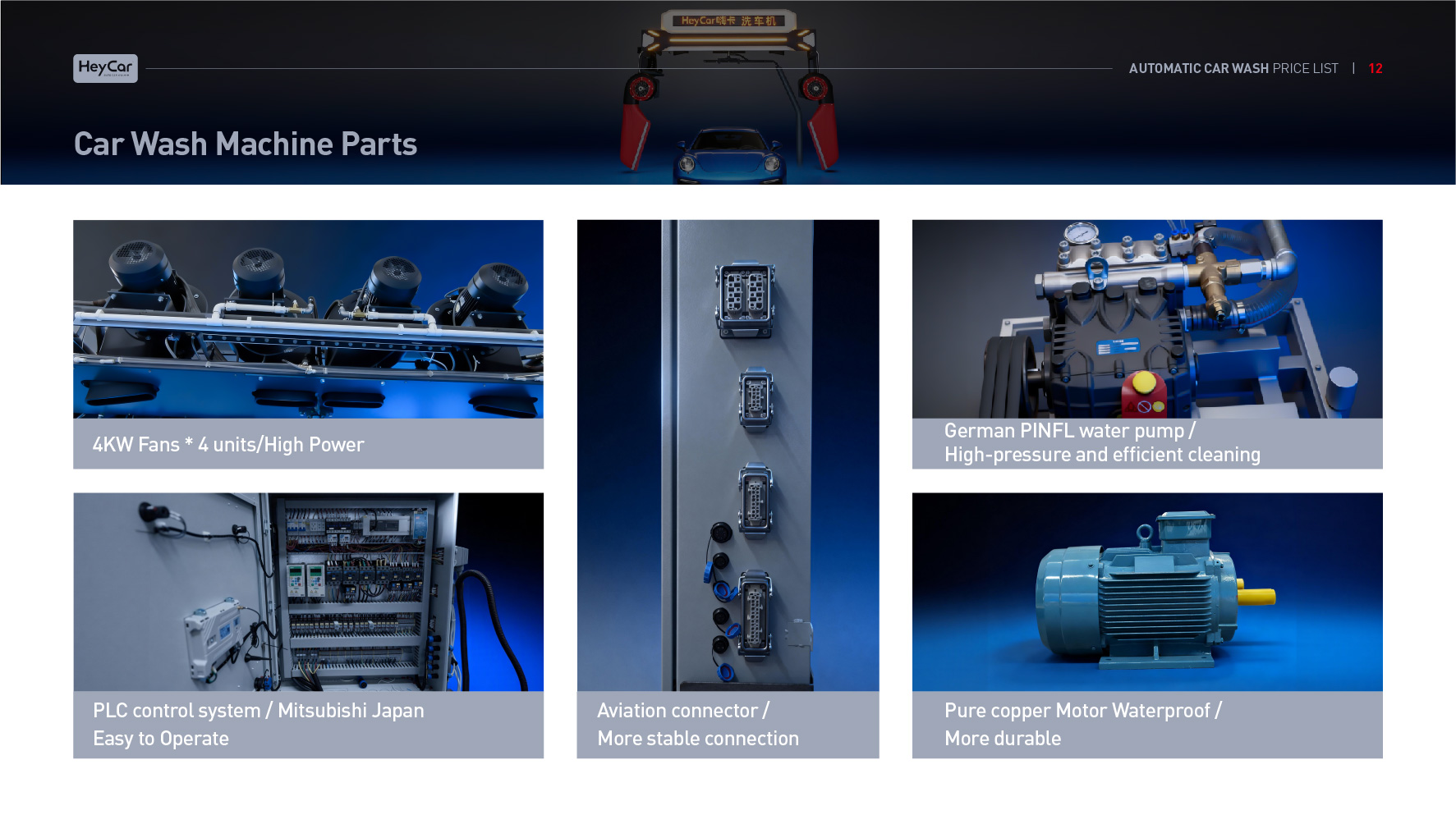

| Core Electronic Components Supply Chain | ||||
| Photoelectric Sensor | / | Pepperl+Fuchs (P+F) / Germany | ||
| Proximity Sensor | Pepperl+Fuchs (P+F) / Germany | |||
| Ultrasonic Sensor | / | Pepperl+Fuchs (P+F) / Germany | ||
| Air Source Treatment | AirTac / Taiwan | |||
| Underchassis Nozzles | N/A | 16 Nozzles | 16 Nozzles | 16 Nozzles |
| Spray Arm Nozzles | 12 Nozzles | 15 Nozzles | 15 Nozzles | 15 Nozzles |
| Travel / Arm Motors | Waterproof Rating IP67 Heavy-Duty Industrial Motors | |||
| Complimentary Package & Upgrades | ||||
| Floor Mesh & Limit Block | N/A | N/A | FREE / Included | FREE / Included |
| Industrial Vacuum Cleaner | N/A | N/A | FREE / Included | FREE / Included |
| Water Storage Tank Capacity | 500L Tank | 1000L Tank | 1000L Tank | 1000L Tank |
Built-in Smart Automated Features Matrix:

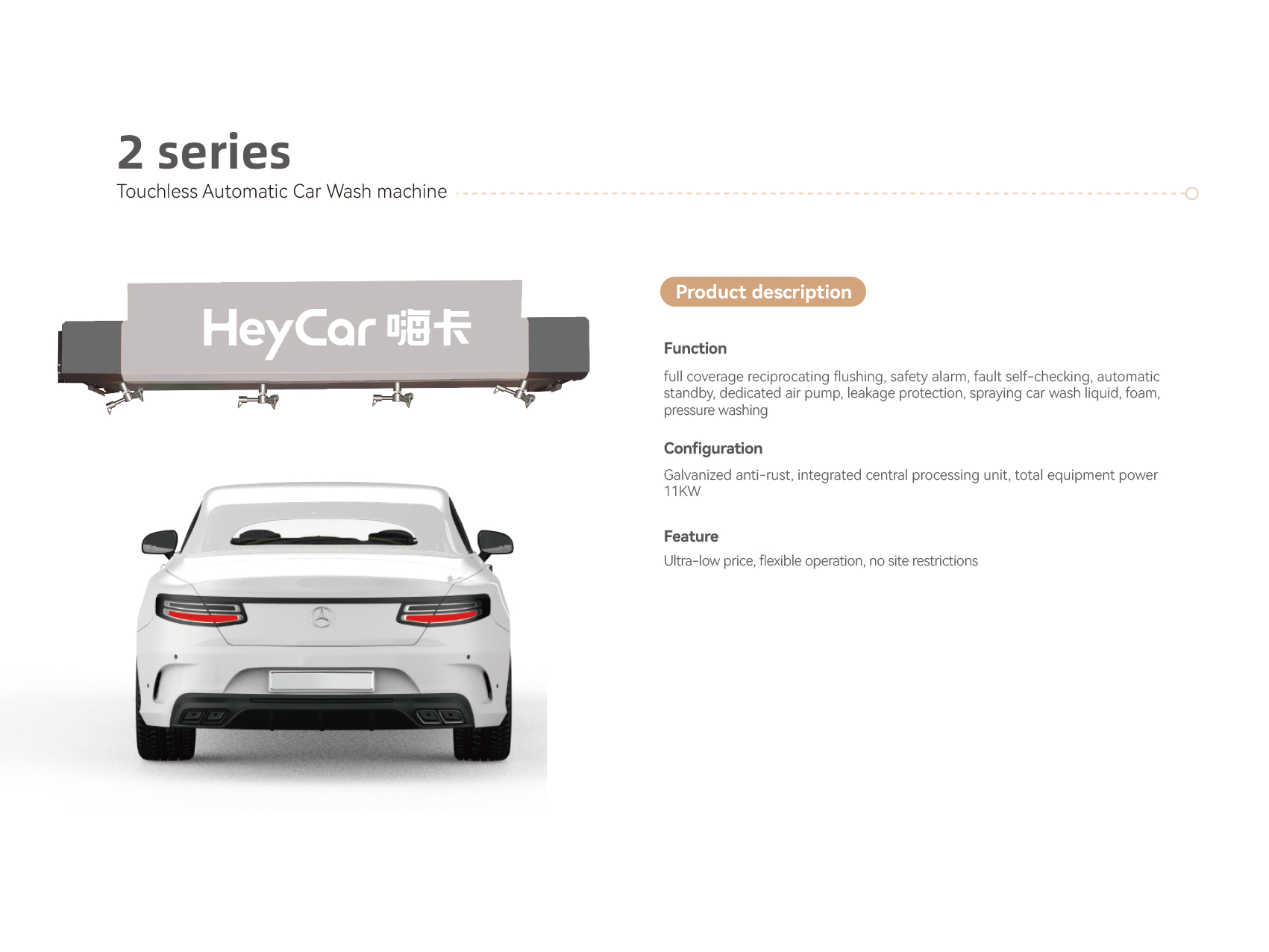

- TS-2 Functions: Safety Alarm, Intelligent Fault Self-Diagnosis, Automated Standby, Dedicated Air Pump, Vehicle Parking Detection, Electrical Leakage Protection. (Supports Custom LOGO / Water & Single Foam Spray).
- TS-3 & TS-5 Functions: Upgraded with 360-degree Rotary Wash Arm, Vehicle Contour Identification, Touch-screen Control Panel, Collision-Prevention Automatic Reset, Underchassis Cleaning, and Auto-Spraying Car Wash Liquid / Water Wax Coating / Air Drying. Custom LED Screen Logo Branding.
- TS-7 / TS-7S Premium Functions: Fully integrated Automatic Chemical Proportional Metering Pump, Multicolor Lava Waterfall Foam System, and Deep High-Pressure Underchassis Jet-spray bars.
HeyCar Series 2 Touchless Automatic Car Wash Machine
Brand:
HeyCar
Model:
HeyCar-Series-2
Send message
HeyCar is a high-tech enterprise specializing in the research and development and production of fully automatic car washing machine equipment. The main products of the car washing machine are automatic gantry car washing machine, reciprocating car washing machine, non-contact car washing machine.
