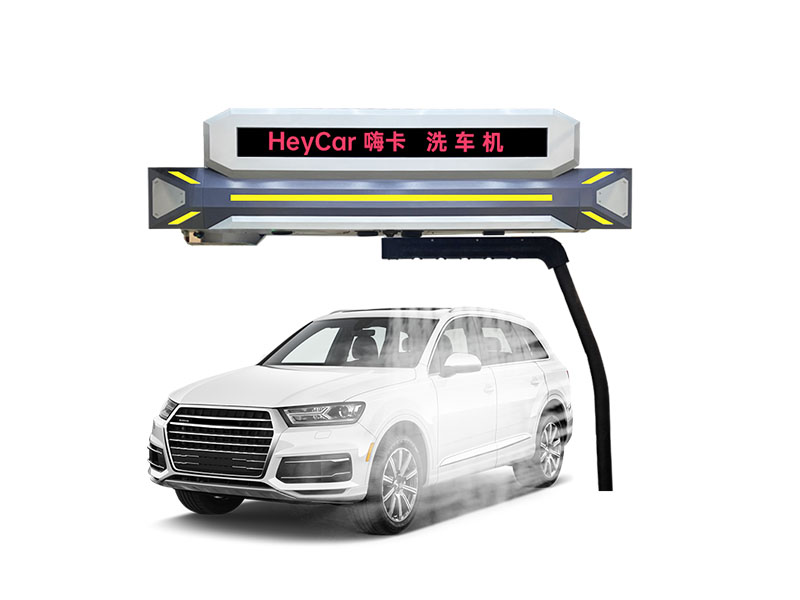

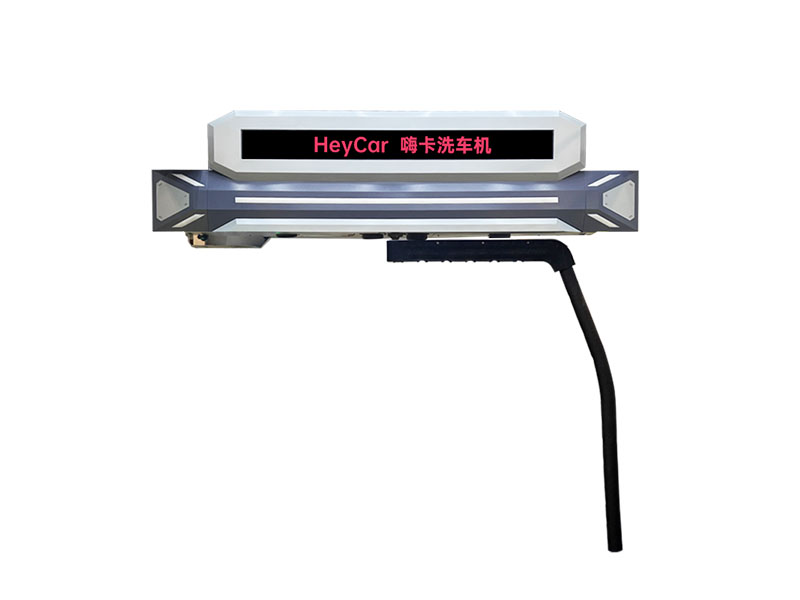

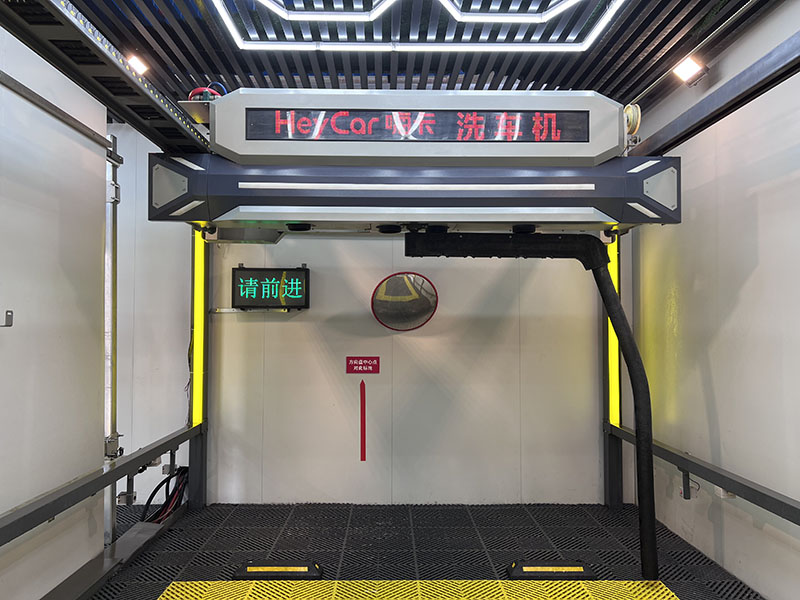

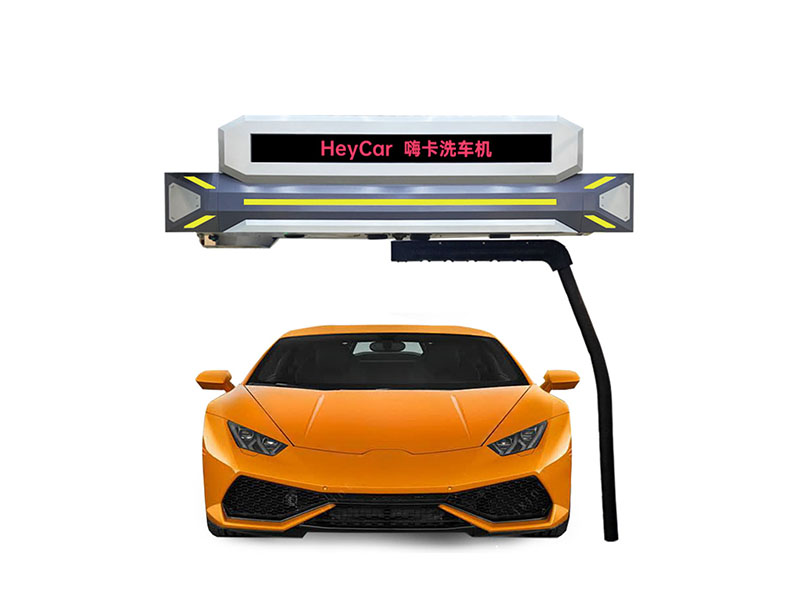

HeyCar Series 7 Commercial Touchless Car Wash System
2014
{{ galleryProps.activeIndex + 1 }}/5
Description
Product Overview
The HeyCar Series 7 & 7S are premium commercial-grade wash stations engineered to maximize business revenue. By introducing premium visual customer experiences like the Multicolor Lava Waterfall Foam System and an aggressive 100KG German pump station, it delivers flawless cleaning results that allow investors to command premium ticket pricing.

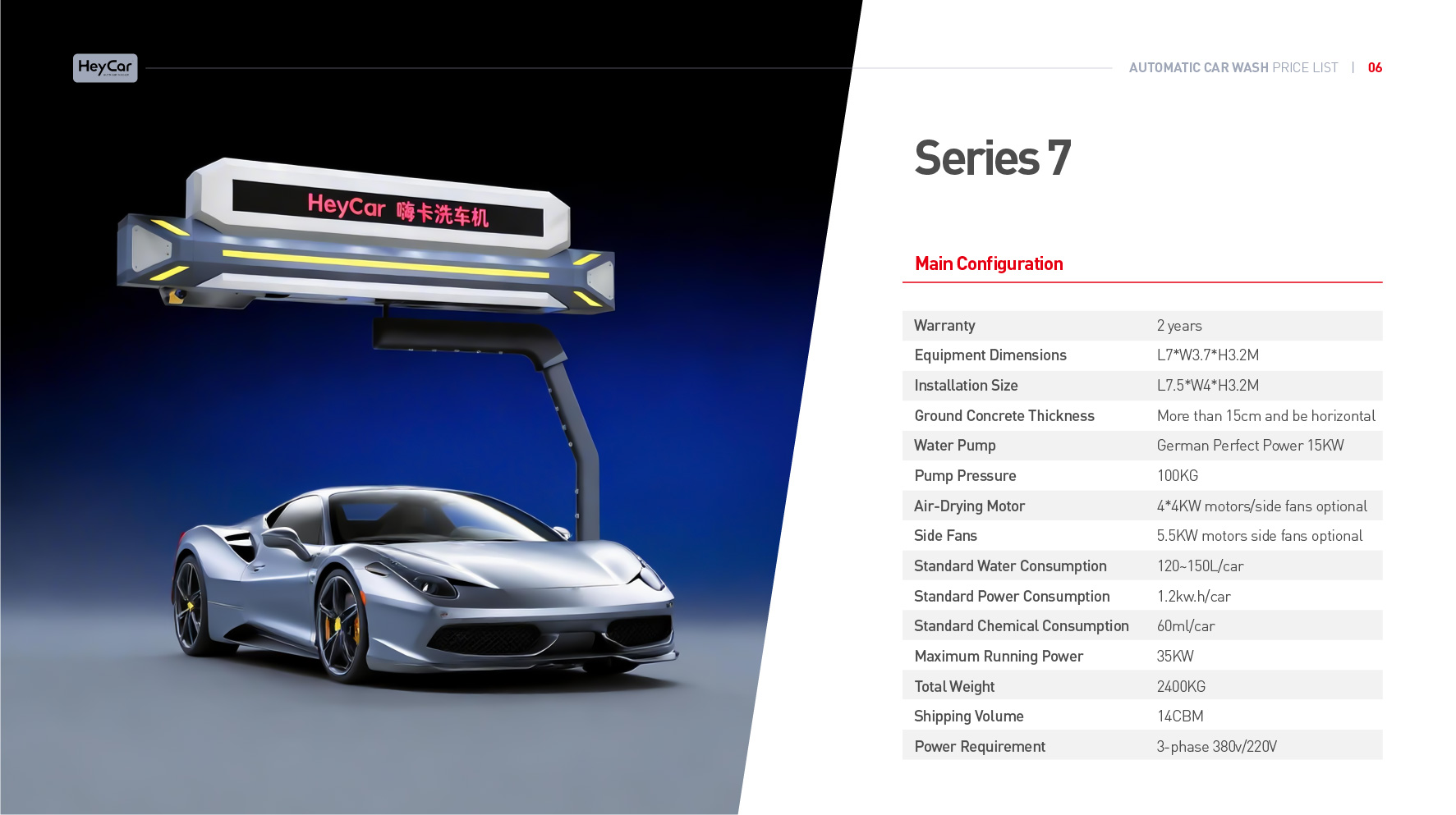

Technical Specifications & Engineering Blueprint
| Technical Parameters | Specifications & Value |
|---|---|
| Maximum Vehicle Wash Size | 6200mm × 2000mm × 2000mm (Extended Length) |
| Equipment Dimensions | 7000mm × 3700mm × 3200mm |

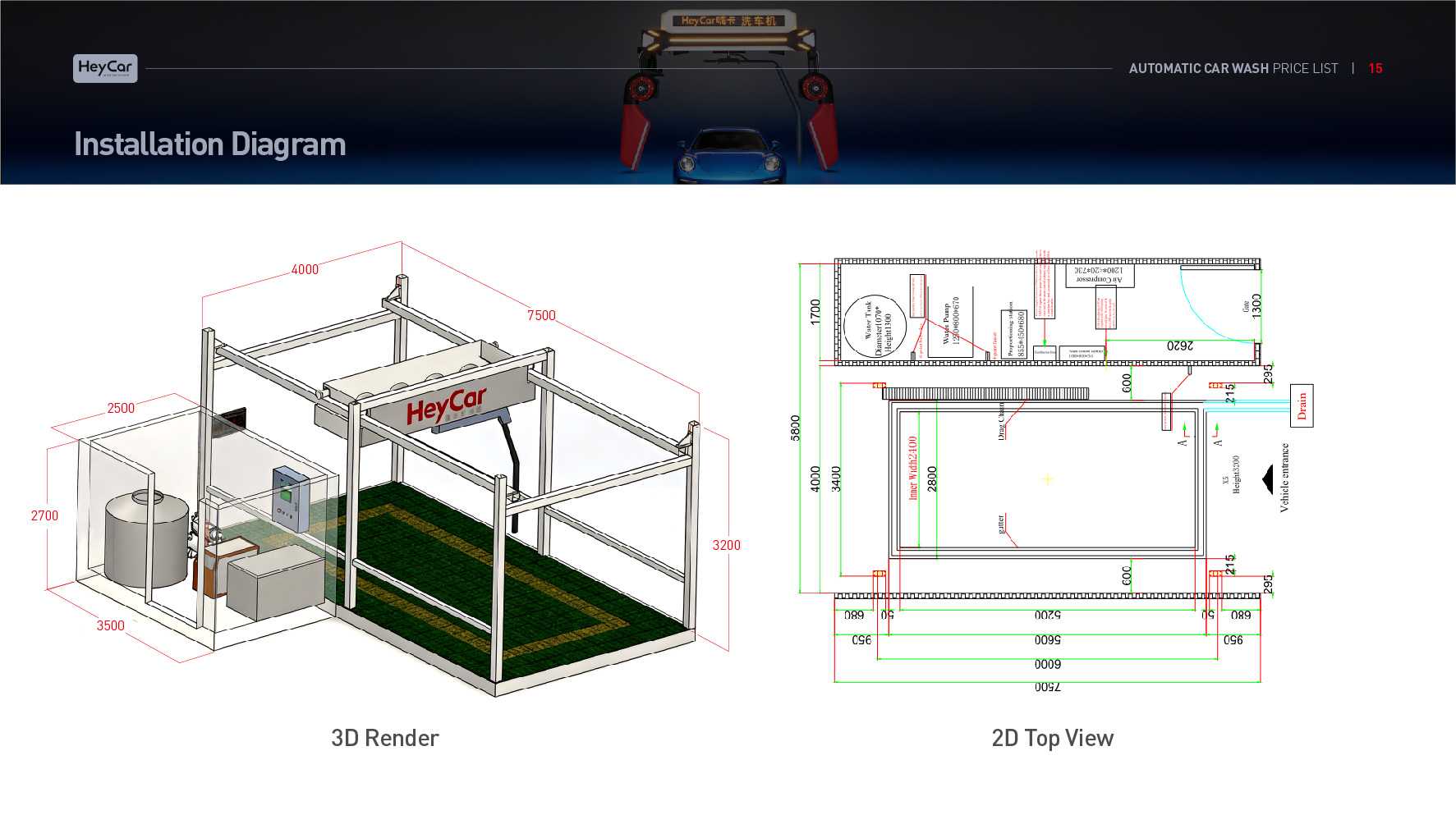

| Minimum Bay Requirement (L×W×H) | 7500mm × 4000mm × 3200mm |
| High-Pressure Pump Station | German Perfect Power 15 KW Ultra Pump |
| Max Pump Pressure | 100 KG / 1422 PSI Extreme Output |
| Integrated Nozzle Configuration | 16 Underchassis Nozzles + 15 Spray Arm Nozzles |
| Water Consumption | 120 – 150 Liters per car |
| Electricity Consumption | 1.2 kw.h per vehicle |
| German Electronic Sensors | Pepperl+Fuchs (P+F) Photoelectric, Proximity & Ultrasonic Suite |
| Global Factory Warranty | 2 Years Full Mechanical Warranty |
Core Functional Checklist
- Lava Waterfall Foam System: Blended chemical injectors completely blanket vehicles in premium thick foam conditioner.
- 100KG Piercing Water Knife: Easily strips deep wheel hub grime, dried biological wastes, and stubborn winter mud.
- Extended 6.2M Wash Bed: Accommodates long luxury SUVs, crew-cab pickup trucks, and extended commercial delivery vans.
- Series 7S Side-Fans Upgrade: Integrates dedicated side air blowers to completely eradicate side panel water spots.

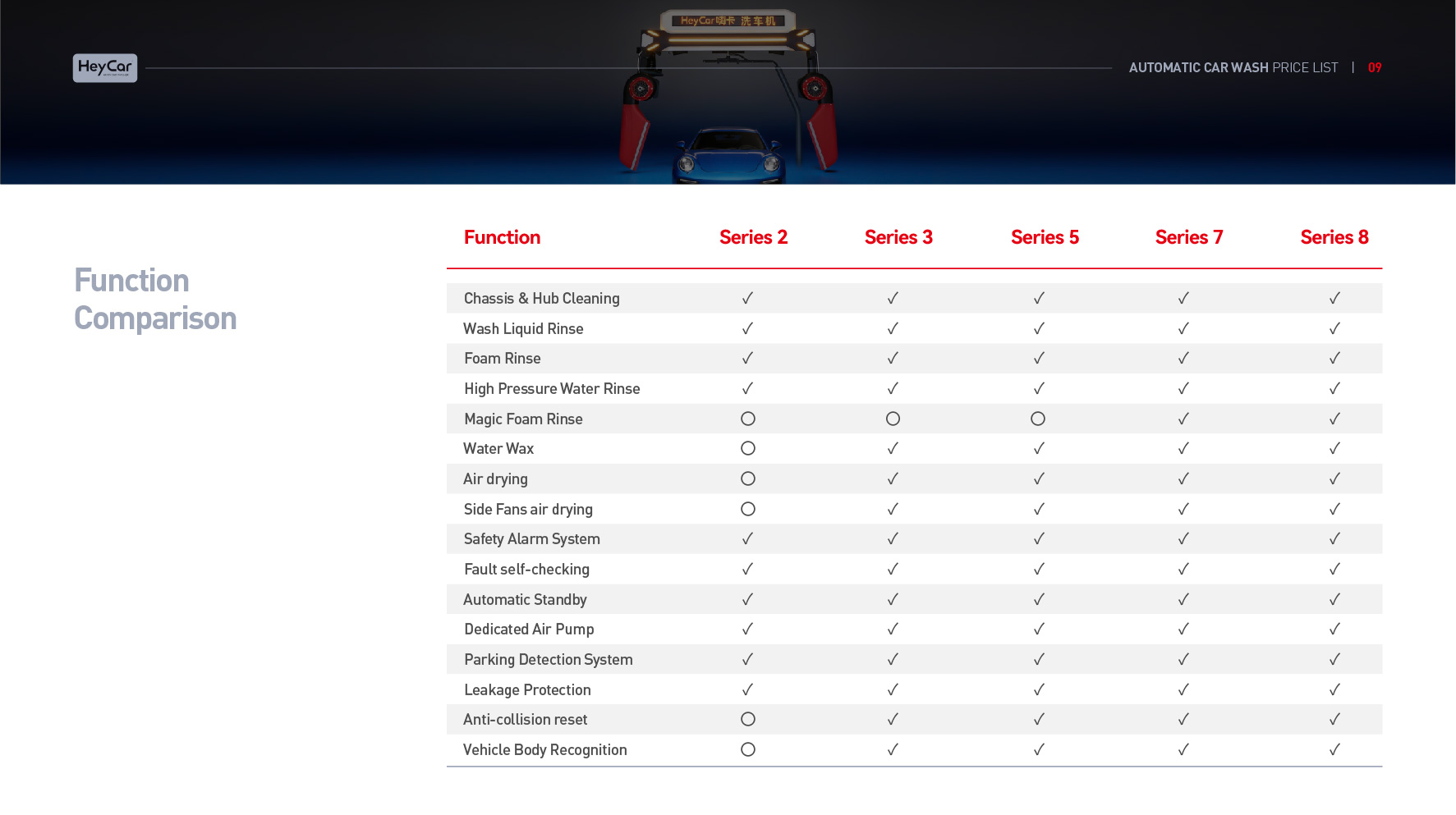

HeyCar Full Series Function Comparison Matrix
Compare technical capabilities and built-in washing features across the complete HeyCar touchless automated line to find the perfect machinery for your commercial car wash site layout.
| Washing Features | Series 2 | Series 3 | Series 5 | Series 7/7S | Series 8 |
|---|---|---|---|---|---|
| Chassis Wash | ✔ Standard | ✔ Standard | ✔ Standard | ✔ Standard | ✔ Standard |
| Pre-Soak Shampoo | ✔ Standard | ✔ Standard | ✔ Standard | ✔ Standard | ✔ Standard |
| High-Pressure Wash | 40 KG | 60 KG | 80 KG (German) | 100 KG (German) | 120 KG (PINFL) |
| Built-in Air Dryer | ✘ No | ✔ 16KW (Top) | ✔ 16KW (Top) | ✔ 27KW (7S Full) | ✔ Contouring Smart |
| Magic / Lava Foam | ✘ No | ✘ No | Optional | ✔ Standard | ✔ Standard |
| Water Wax Coat | ✘ No | ✔ Standard | ✔ Standard | ✔ Standard | ✔ Standard |
HeyCar Touchless Car Wash Machine Full Series Technical Specifications
| Model / Specifications | TS-2 | TS-3 / TS-3S (+Side Fan) | TS-5 / TS-5S (+Side Fan) | TS-7 / TS-7S (+Side Fan) |
|---|---|---|---|---|
| Max Wash Size | 5.2 × 2 × 2 M | 5.2 × 2 × 2 M | 5.2 × 2 × 2 M | 6.2 × 2 × 2 M |
| Machine Dimensions | 6 × 3.4 × 2.85 M | 6.3 × 3.4 × 3 M | 6 × 3.4 × 3 M | 7 × 3.7 × 3.2 M |
| Min Installation Space | 6 × 3.4 × 2.85 M | 6.5 × 3.5 × 3 M | 7 × 4 × 3.2 M | 7.5 × 4 × 3.2 M |
| High-Pressure Pump | Chinese Brand 7.5KW | Chinese Brand 11KW | German Perfect Power 11KW | German Perfect Power 15KW |
| Water Pressure | 40 kg | 60 kg | 80 kg | 100 kg |
| Total Power | 11 KW | 31.05 KW | 31.05 KW | 35.05 KW |
| Max Running Power | 8.05 KW | 18.75 KW | 18.75 KW | 18.75 KW |
| Avg Water Consumption | 30L – 40L / Car | 60L – 80L / Car | 100L – 120L / Car | 120L – 150L / Car |
| Power Consumption | 0.5 kw.h / car | 0.8 kw.h / car | 1.0 kw.h / car | 1.2 kw.h / car |
| Chemical Consumption | 20 – 40 ml | 20 – 40 ml | 20 – 40 ml | 20 – 40 ml |
| Washing Duration | 2 – 3 minutes | 6 – 8 minutes | 6 – 8 minutes | 6 – 8 minutes |

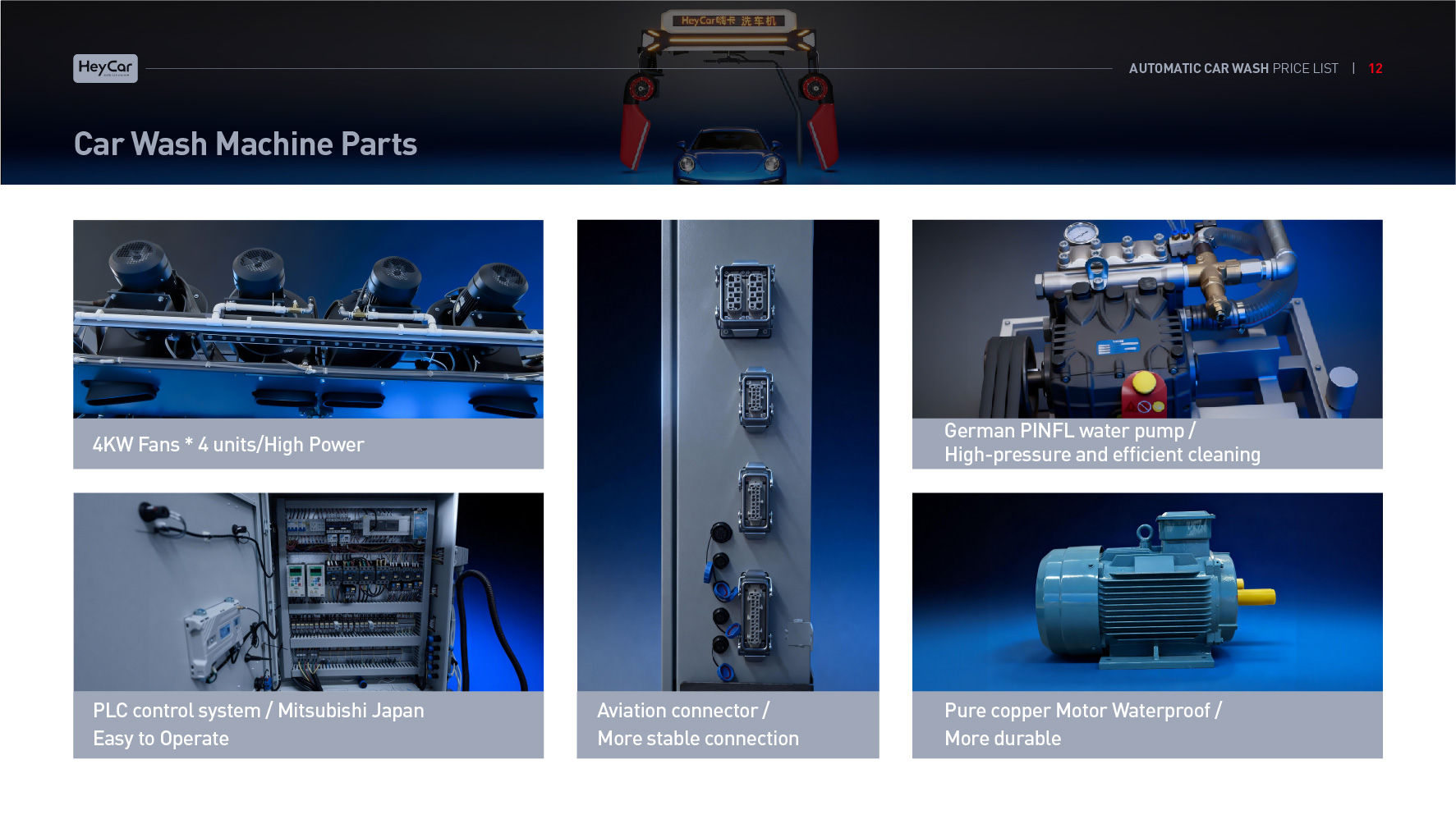

| Air Dryer Configuration | N/A (Not Available) | 4 × 4KW Fans (Side Fans Optional) | 4 × 4KW Fans (Side Fans Optional) | 4 × 4KW Fans (Side Fans Optional) |
| Control System | Domestic Integrated Board | Domestic Integrated Board | Japanese Mitsubishi PLC | Japanese Mitsubishi PLC |
| Frame Material | Hot-dip Galvanized Metal Sheet | |||
| Mainframe Material | Stainless Steel 304 (SUS304) | |||

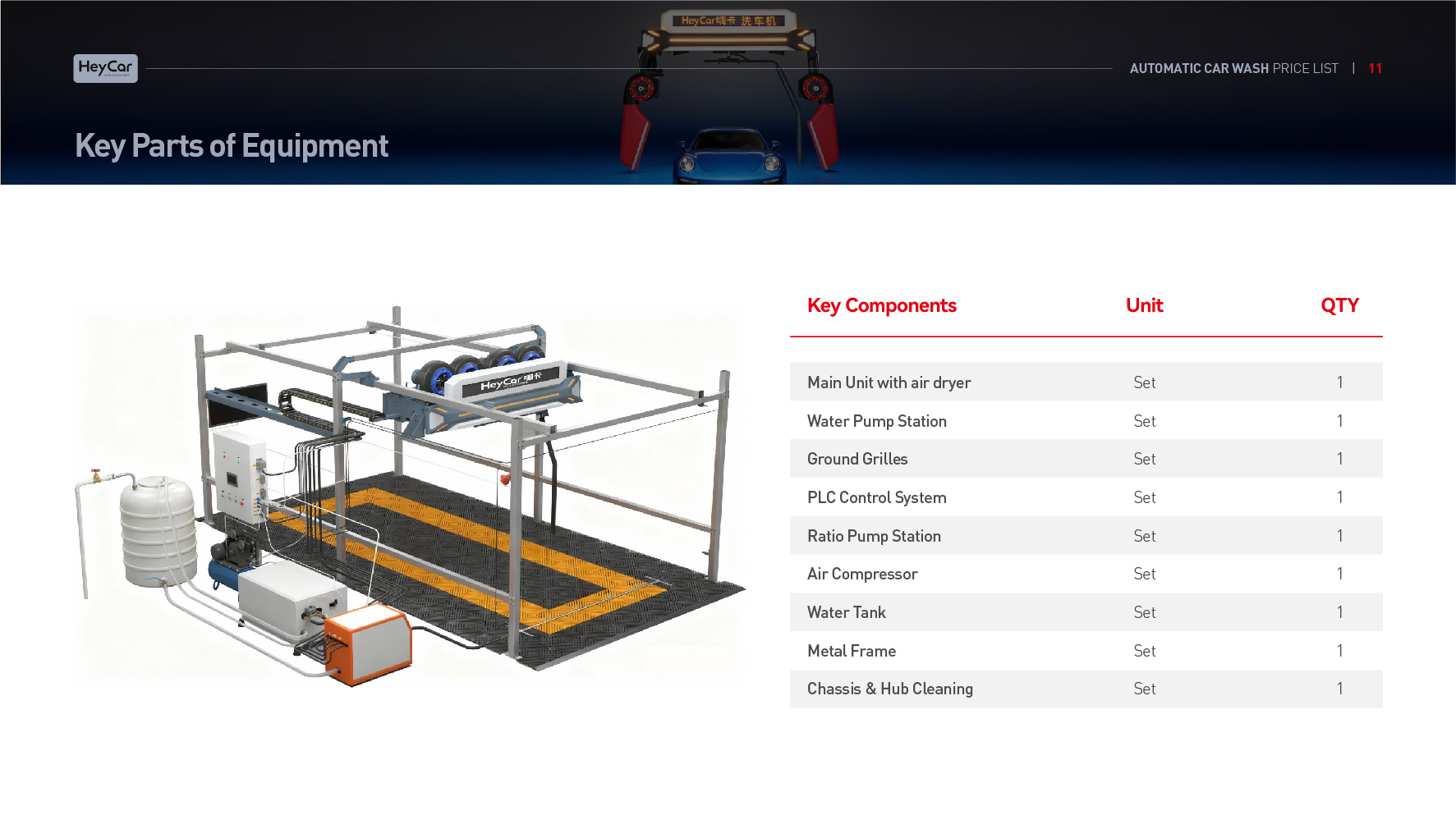

| Core Electronic Components Supply Chain | ||||
| Photoelectric Sensor | / | Pepperl+Fuchs (P+F) / Germany | ||
| Proximity Sensor | Pepperl+Fuchs (P+F) / Germany | |||
| Ultrasonic Sensor | / | Pepperl+Fuchs (P+F) / Germany | ||
| Air Source Treatment | AirTac / Taiwan | |||
| Underchassis Nozzles | N/A | 16 Nozzles | 16 Nozzles | 16 Nozzles |
| Spray Arm Nozzles | 12 Nozzles | 15 Nozzles | 15 Nozzles | 15 Nozzles |
| Travel / Arm Motors | Waterproof Rating IP67 Heavy-Duty Industrial Motors | |||
| Complimentary Package & Upgrades | ||||
| Floor Mesh & Limit Block | N/A | N/A | FREE / Included | FREE / Included |
| Industrial Vacuum Cleaner | N/A | N/A | FREE / Included | FREE / Included |
| Water Storage Tank Capacity | 500L Tank | 1000L Tank | 1000L Tank | 1000L Tank |
Built-in Smart Automated Features Matrix:
- TS-2 Functions: Safety Alarm, Intelligent Fault Self-Diagnosis, Automated Standby, Dedicated Air Pump, Vehicle Parking Detection, Electrical Leakage Protection. (Supports Custom LOGO / Water & Single Foam Spray).
- TS-3 & TS-5 Functions: Upgraded with 360-degree Rotary Wash Arm, Vehicle Contour Identification, Touch-screen Control Panel, Collision-Prevention Automatic Reset, Underchassis Cleaning, and Auto-Spraying Car Wash Liquid / Water Wax Coating / Air Drying. Custom LED Screen Logo Branding.

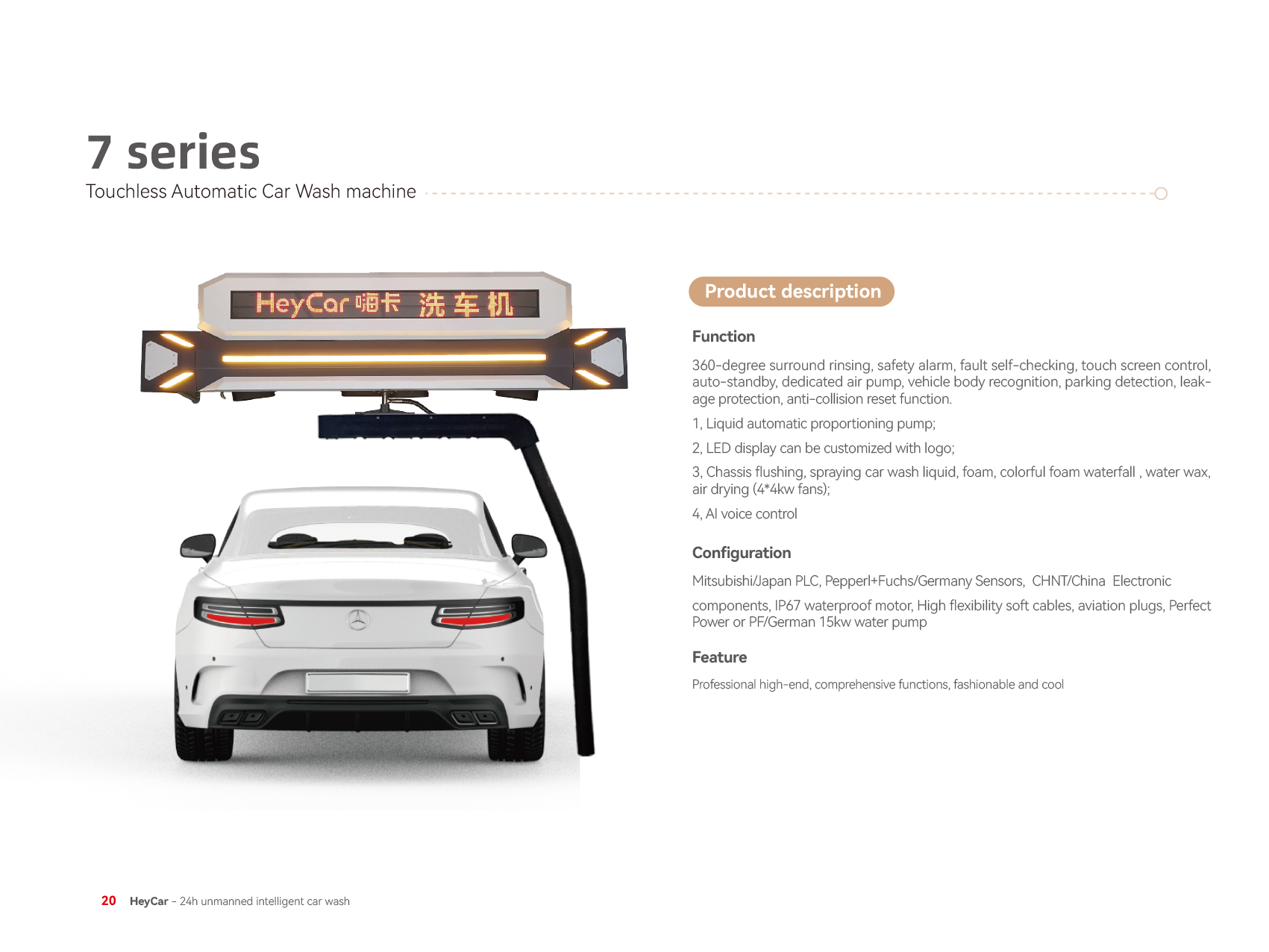

- TS-7 / TS-7S Premium Functions: Fully integrated Automatic Chemical Proportional Metering Pump, Multicolor Lava Waterfall Foam System, and Deep High-Pressure Underchassis Jet-spray bars.
